Signal R2

Model rockets have fins and launch super fast; real space launch vehicles don't. With thrust vectoring, your rockets can slowly ascend and build speed, instead of leaving your sight in seconds. Signal R2, a thrust vectoring kit, is here to bridge that gap. Sales are now open; production begins mid May, and shipping starts in late June, 2018.

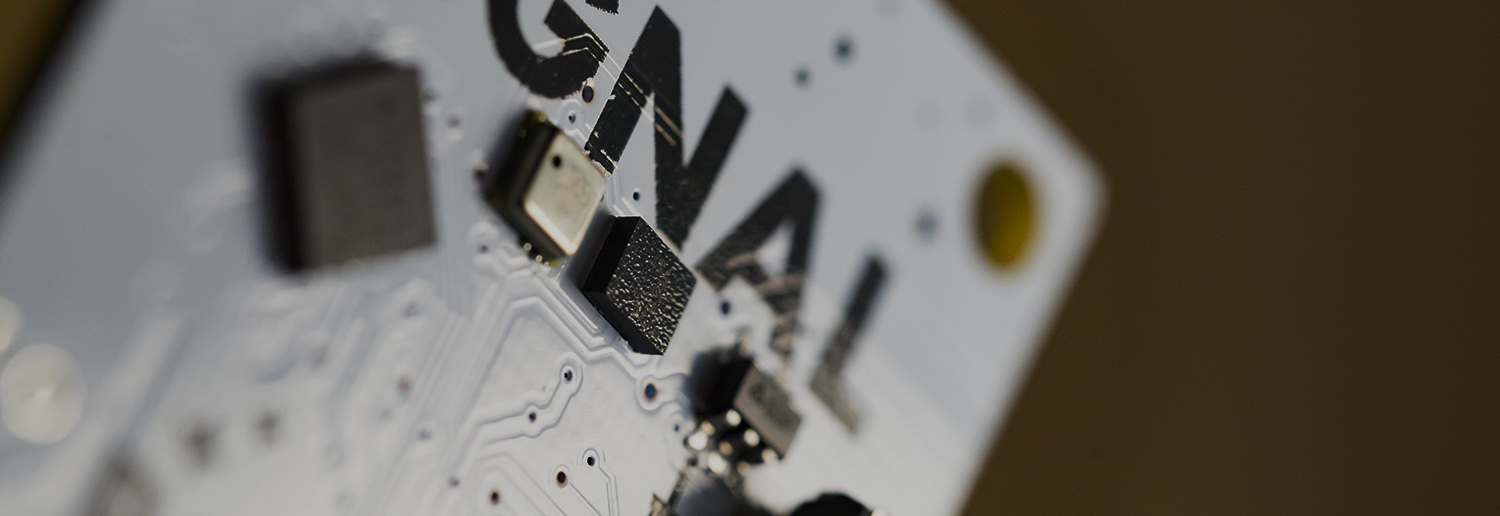

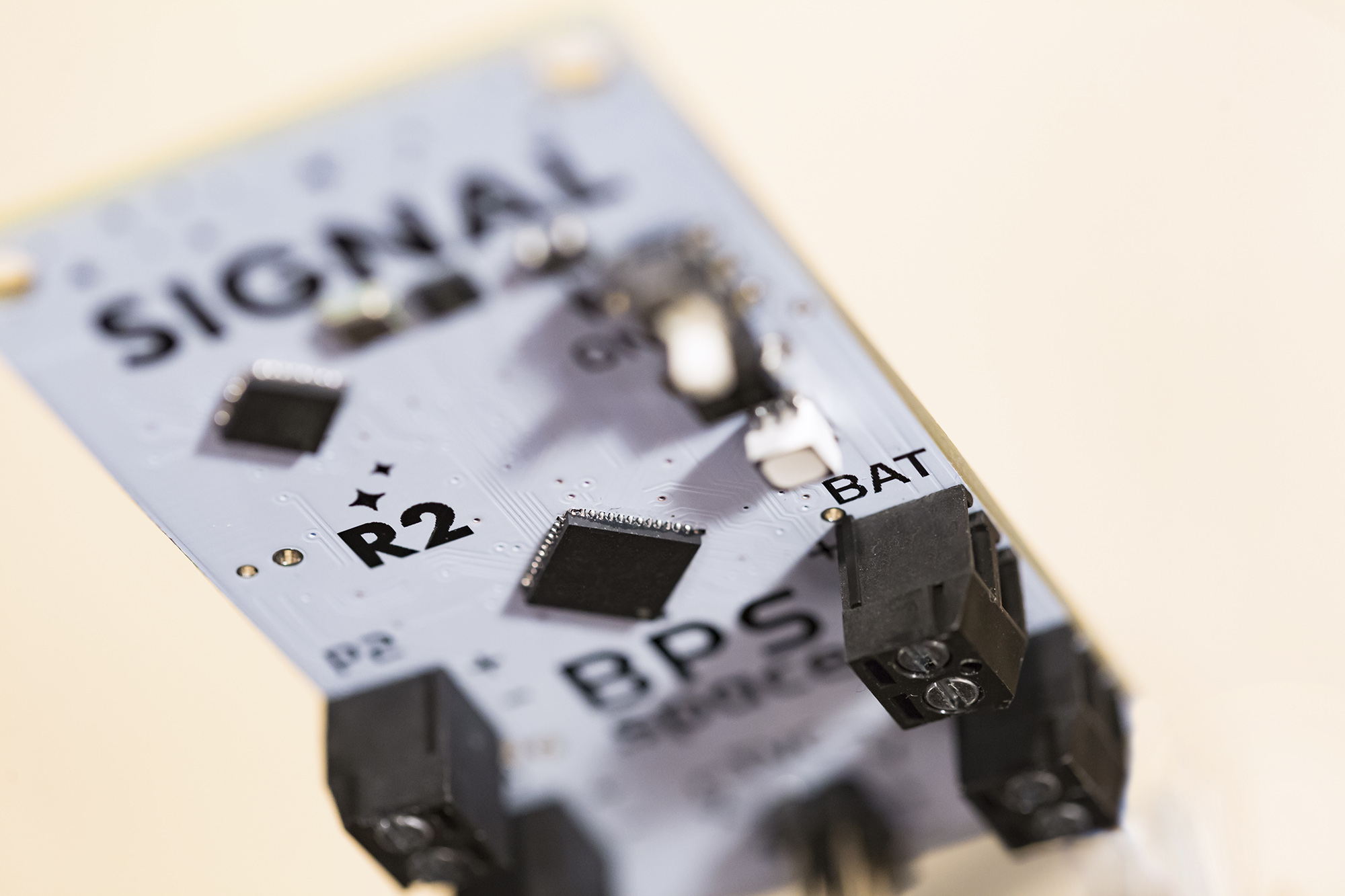

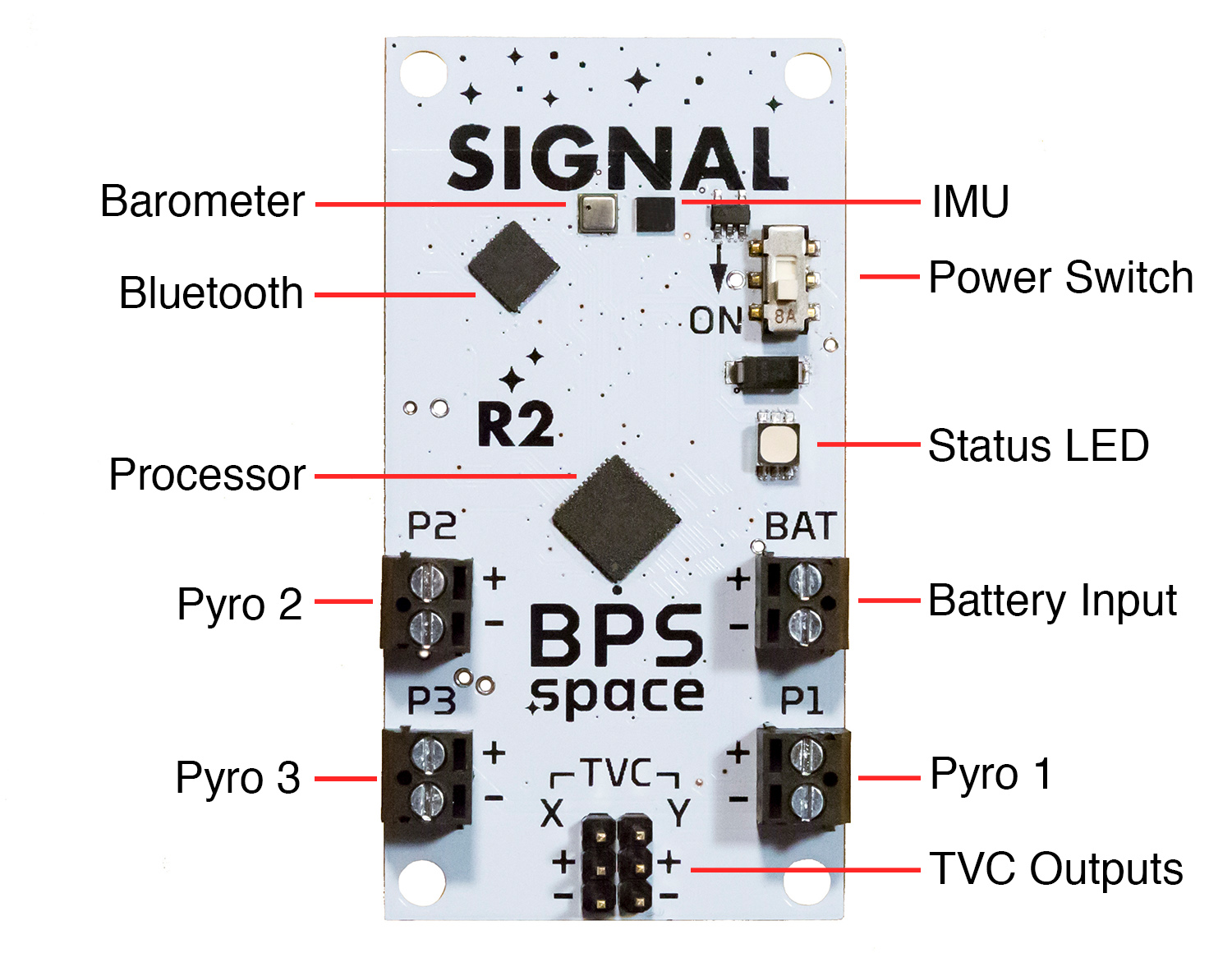

The Computer

The Signal flight computer runs a high speed control loop, prioritizing separate functions depending on the progress of the flight. Thrust vectoring draws considerable current from the power source; once burnout is detected, Signal centers and locks the vectoring mount. Focus is then set on detecting apogee and triggering pyro events. A power source of at least 8V must be used - 9v alkaline or 11.1v LiPos are recommended.


The software

The flight software tracks vehicle flight dynamics while the rocket is powered on. Signal looks for cues to shift system states at liftoff, burnout, apogee, and landing. Especially regarding liftoff, this makes Signal's operation simple. Once the settings file is configured for flight, all that is required of the user is turning on the flight computer; Signal automatically enters the pad-idle mode. In pad-idle mode, Signal can detect launch in under 10ms. Once detected, thrust vectoring is activated, in-flight abort is armed, and high-frequency data logging begins.


The TVC Mount

Developed over three years of iterative design, the thrust vector control motor mount is made from 3D printed PLA material. The mount uses two 9g servos, geared down for higher accuracy. The assembly can gimbal a motor ±5 degrees on each axis, X and Y. Though up to 40N of force will work with the mount, it works best with lower impulse motors, especially those with long burn times.


The Data

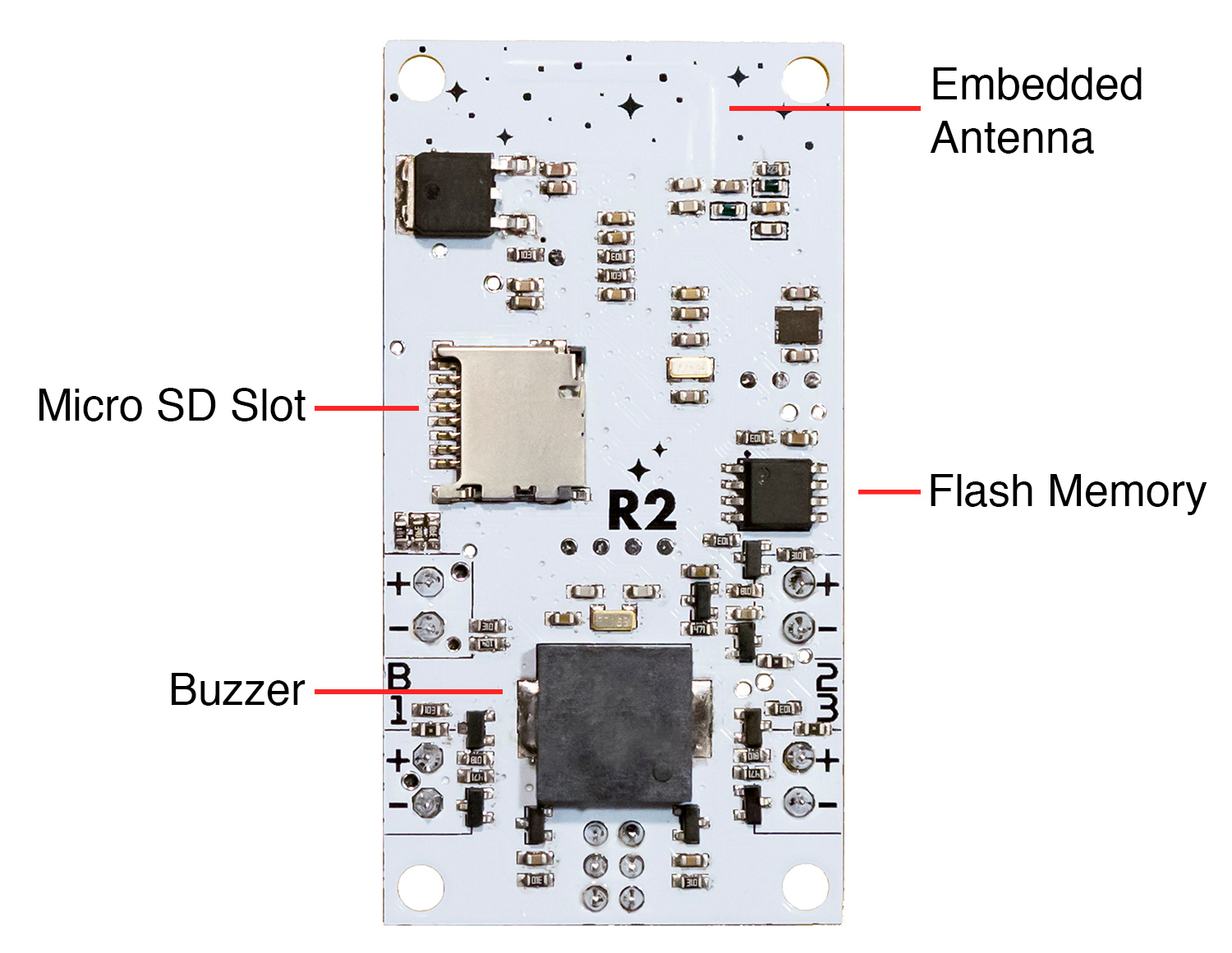

In-flight data logging takes place at 40Hz. Vectoring output, vehicle orientation, altitude, velocity, acceleration, and several other data points are recorded using a custom protocol to a high-speed flash chip. Upon landing detection, Signal creates a new CSV file on the micro SD card, dumping flight data into it. Once the data is verified to match, the flash chip is cleared and Signal is ready to fly again. A 1GB Micro SD card can store hundreds of flights before it must be cleared. Flight settings are programable via a settings file on the removable Micro SD card, where in-flight data is also stored.


The App

Signal is configured using a app on an iOS or Android smartphone. The app helps the user configure TVC sensitivity, parachute deployment altitudes, the abort system, ground testing, rocket tuning, and more. This app does just about everything. Not sure if your pyro charges are connected and working? Signal constantly checks continuity on each channel and reports it to the app. Wondering if the inertial measurement system is working? View real time gyroscope, accelerometer, and orientation data.


In The Box

  • One Signal R2 flight computer
  • Full set of building and flying instructions
  • Flight Computer mounting brackets for a 74mm airframe
  • One 74mm thrust vectoring mount for 29mm motors
  • All required M3.5 mounting screws
  • BPS stickers!
  • Flight computer and TVC cutout/drill guides for a 74mm airframe
  • Two 50cm TVC servo extension cables

Not In The Box

  • An 11.1v LiPo battery, or a standard 9v
    • Their respective connectors, with exposed-end wires
  • A Micro SD card, required for programming and operation of the flight computer
  • At least 2, 30cm lengths of the appropriate motor mount tube
    • One to line the outside of the motor, the other to align the TVC mount
  • At least 2, 45cm lengths of 74mm body tube for the rocket
  • Standard tools
    • Hobby knife, epoxy/glue, standard screwdriver, etc

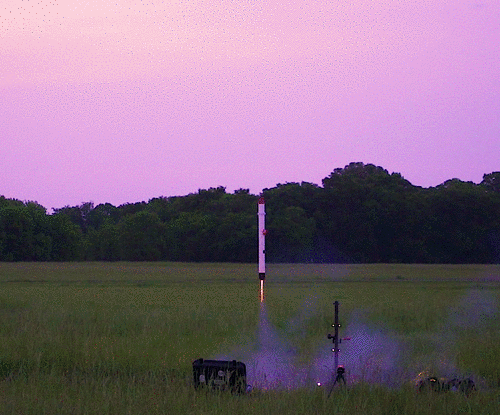

See it in action


Four more things

  • Signal does not carry any GPS or point-based guidance equipment. The computer is only able to keep the rocket vertically stable off the launch pad.
  • This kit is for advanced rocketeers. The implementation of TVC in model rockets is not perfect, but will improve with time. If you don’t have experience with scratch-built rockets, I recommend honing your skills with an easier build first.
  • If something ships to you and is broken on arrival, send it back and I’ll fix it! I’m committed to making sure all users have a good experience with TVC rockets.
  • Sales of Signal R2 are limited to United States citizens and residents only. BPS is working closely with the United States Directorate of Defense Trade Controls to ensure Signal does not violate the ITAR/USML. Until that is complete, we can only sell and ship within the US.

Signal R2 sales are open! Production has already begun, and shipping starts in late June, 2018.


Still have questions? Not sure about something? Shoot me a message using the contact form here.
